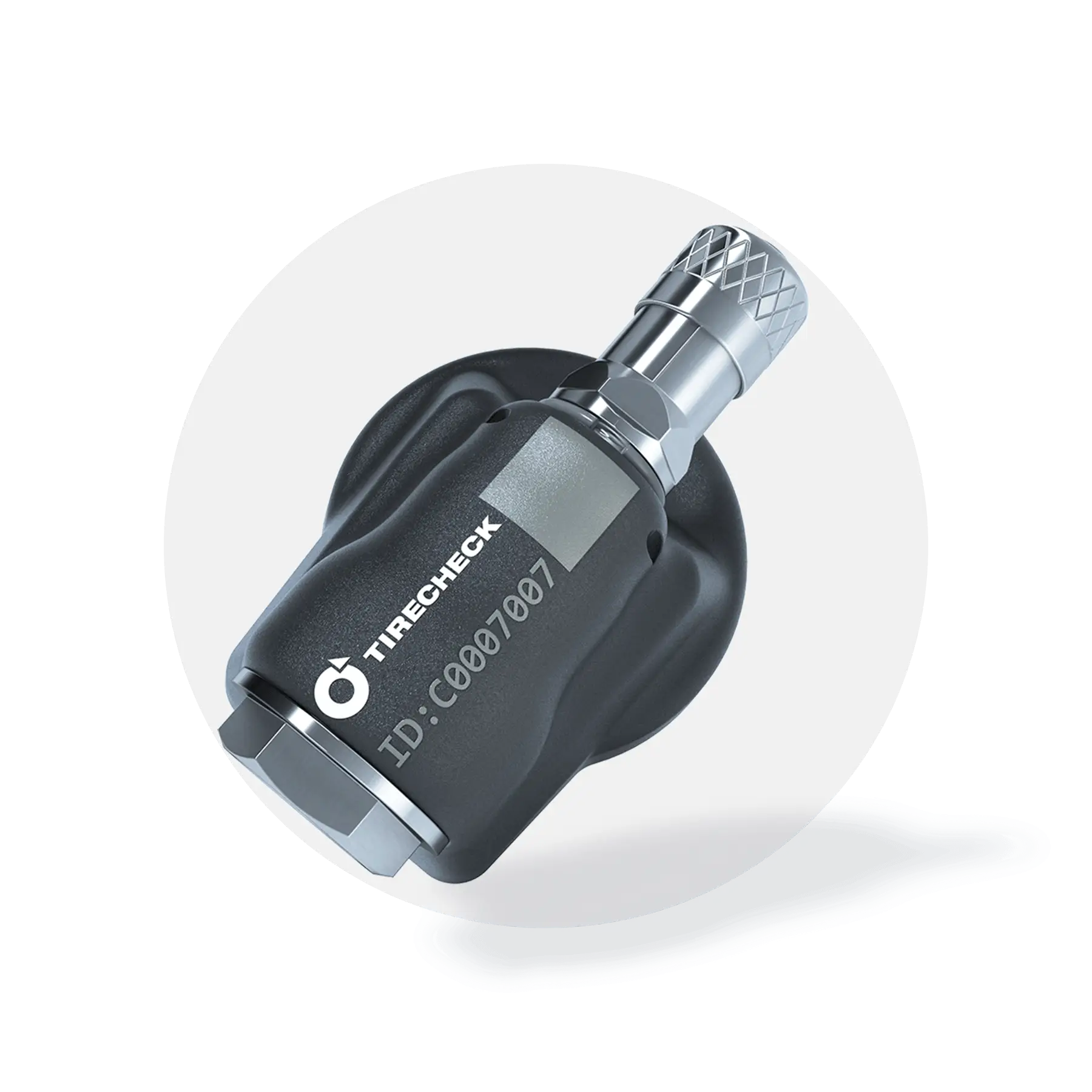

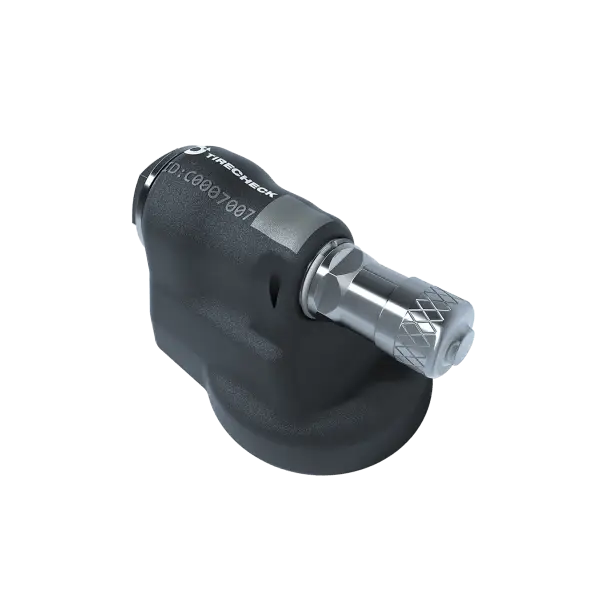

EXTERNAL TRUCK VALVE MOUNTED TPMS SENSOR
SUITABLE FOR
TRUCKS, TRACTOR UNITS, TRAILERs
COMMUNICATION
RADIO FREQUENCY
The external tire pressure monitoring sensor mounts directly to standard brass truck tire valves, allowing for fast fitment without requiring demounting of the tire. Suitable for most wheel designs, the TPMS sensor transmits ambient temperature and pressure to a suitable receiver every 120 seconds.
Ease of Installation
Easy to install and designed to fit most standard wheel designs to save time and money in the deployment phase.
OEM Ready
The TireCheck External Truck Valve Mounted TPMS Sensor is manufactured in Germany according to the strictest automotive Standards.
Continuous Dataflow
Tire pressure and temperature are measured precisely with data transmitted continuously every two minutes to a suitable receiver.
Wide Application
The External Truck Valve Mounted TPMS Sensor is suitable for a wide range of commercial vehicle wheels and trailers.
SPECIFICATION
PART NUMBER:
030405
VALVE MOUNT:
Metal Valve with VG8/8V1 thread
PRESSURE RANGE:
0-9 Bar
OPERATING TEMPERATURE:
-40°C to +115°C
SPEED LIMIT:
Up to 130 km/h
RADIO FREQUENCY:
433.92 MHz
LF-TRIGGER FREQUENCY:
125 kHz
POWER SUPPLY:
3V Battery
TYPICAL BATTERY LIFETIME:
5 Years
WEIGHT:
41 g
DIMENSIONS:
30 x 27 x 44 mm
DATA TRANSMISSION:
120-Second Interval
